Gemini 3400 Information

Model GEMINI 3400

Overall Length 33'2"

Waterline Length 30'6"

Bridgedeck Length 29'4"

Wingdeck Clearance

Beam (max.) 14'0"

Draft (max.) 5'0"

Mast Hgt. Off Deck

Mast Hgt. Off Water 45'0"

Displacement 8,000 lbs

Standard Auxiliary 1 x 25 hp outboard

Mainsail 270 sf

Genoa 330 sf

Total Area 490 sf

Spinnaker 860 sf

Berths 3 doubles

Staterooms 3

Heads 1

Fuel 42 gal

Fresh Water 60 gal

Payload 2,000 lbs

Classification Cruiser

Approx. Cost US $100,500

Designer Tony Smith

Builder Performance Cruising, Inc

Year Introduced

No. of Boats Built

Other Cruising Multihulls by Builder Gemini 3200. Tony Smith also designed and built the past production boats Telstar 8m & 11m.

Hull & Sail Plan Hull--semi-circular hulls, full aft; lifting centerboards, reverse transoms, built-in buoyancy; Sail Plan--masthead sloop rig, partially battened mainsail with two reef point, working jib, opt'l genoa, opt'l roller-furling.

Deck Layout Full rigid foredeck, self-draining lockers, wide aft cockpit seats eight and has rigid pilothouse over companionway.

Standard Accommodations Starboard hull--6'4" headroom throughout; Aft--double berth cabin with hanging locker, dressing area, vanity; Midships--galley with stove, oven, broiler, refrigeration; Forward--access to forward master stateroom; Port hull--6'4" headroom, double berth cabin aft, long storage area midships, head with marine toilet forward; Bridgedeck has 6'3" headroom in saloon cabin, navigation area aft, master stateroom forward.

Mechanical Steering system--dual inboard kick-up rudders, Teleflex cable, wheel at the cockpit helm station located to starboard against the forward bulkhead.

Description Like her small sistership, the 3200, the Gemini 3400 combines a high degree of sailing performance with comfortable cruising on a family-oriented boat. Her hulls differs slightly from the 3200 by incorporating low aspect ratio fixed keels, molded steps in the reverse-style transoms and the use of inboard rudders. Standing headroom throughout the interior, three double staterooms and added touches such as twin inboard diesel engines, a rigid pilothouse and a spacious saloon cabin make this an easy boat to live aboard. The Gemini 3400 represents a logical upgrade from the 3200 and is a good choice for comfortable cruising.

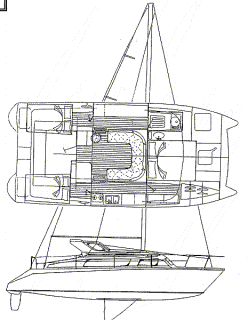

Gemini 3400 Model Information & Layout

BOAT INFORMATION SHEET

Multihull Dynamics

Model	GEMINI 3400
Overall Length	33'2"
Waterline Length	30'6"
Bridgedeck Length	29'4"
Wingdeck Clearance
Beam (max.)	14'0"
Draft (max.)	5'0"
Mast Hgt. Off Deck
Mast Hgt. Off Water	45'0"
Displacement	8,000 lbs
Standard Auxiliary	1 x 25 hp outboard
Mainsail	270 sf
Genoa	330 sf
Total Area	490 sf
Spinnaker	860 sf
Berths	3 doubles
Staterooms	3
Heads	1
Fuel	42 gal
Fresh Water	60 gal
Payload	2,000 lbs
Classification	Cruiser
Approx. Cost	US $100,500
Designer	Tony Smith
Builder	Performance Cruising, Inc
Year Introduced
No. of Boats Built
Other Cruising Multihulls by Builder	Gemini 3200. Tony Smith also designed and built the past production boats Telstar 8m & 11m.
Hull & Sail Plan	Hull--semi-circular hulls, full aft; lifting centerboards, reverse transoms, built-in buoyancy; Sail Plan--masthead sloop rig, partially battened mainsail with two reef point, working jib, opt'l genoa, opt'l roller-furling.
Deck Layout	Full rigid foredeck, self-draining lockers, wide aft cockpit seats eight and has rigid pilothouse over companionway.
Standard Accommodations	Starboard hull--6'4" headroom throughout; Aft--double berth cabin with hanging locker, dressing area, vanity; Midships--galley with stove, oven, broiler, refrigeration; Forward--access to forward master stateroom; Port hull--6'4" headroom, double berth cabin aft, long storage area midships, head with marine toilet forward; Bridgedeck has 6'3" headroom in saloon cabin, navigation area aft, master stateroom forward.
Mechanical	Steering system--dual inboard kick-up rudders, Teleflex cable, wheel at the cockpit helm station located to starboard against the forward bulkhead.
Description	Like her small sistership, the 3200, the Gemini 3400 combines a high degree of sailing performance with comfortable cruising on a family-oriented boat. Her hulls differs slightly from the 3200 by incorporating low aspect ratio fixed keels, molded steps in the reverse-style transoms and the use of inboard rudders. Standing headroom throughout the interior, three double staterooms and added touches such as twin inboard diesel engines, a rigid pilothouse and a spacious saloon cabin make this an easy boat to live aboard. The Gemini 3400 represents a logical upgrade from the 3200 and is a good choice for comfortable cruising.
